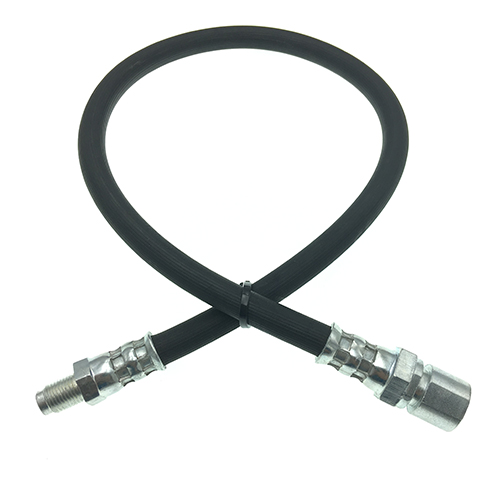

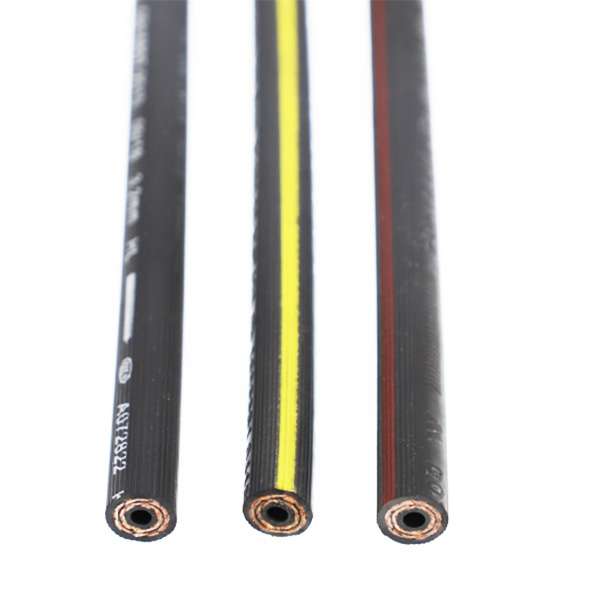

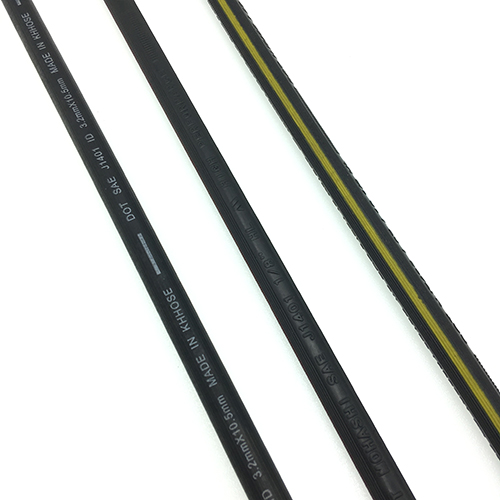

Hydraulic Brake Oil Hose

Construction:

Inner Tube:EPDM rubber

First Braided Layer:High tensile PE/PVA

Middle Rubber:EPDM rubber

Second Braided Layer:High tensile PVA

Outer rubber:EPDM rubber


Temperature Range:-40~+120℃,


Application:

Hydraulic brake hose act as a pressure transmission for automotive hydraulic brake

system.Used for Cars, motorcycles,light trucks and other Light Heavy-Duty vehicles for

hydraulic brake system.


Specification:

  ID

OD

Working Pressure

Burst Pressure

Swelling Capacity

Tensile Strenth

MM

MM

BAR

BAR

ML/M

N

3.2

10.5

276

490

0.43-0.89

2500

4.8

12.5

276

345

0.43-0.89

2500
