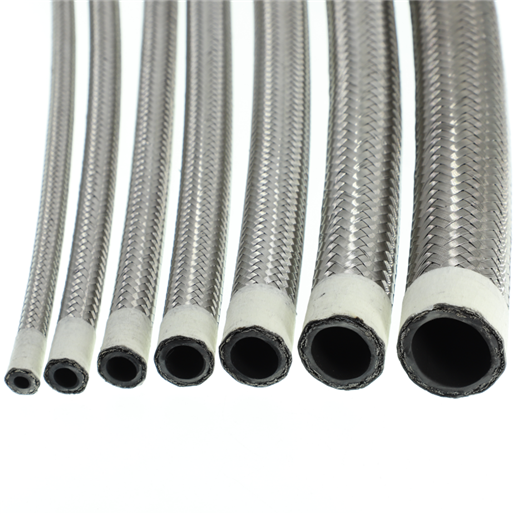

Structure：

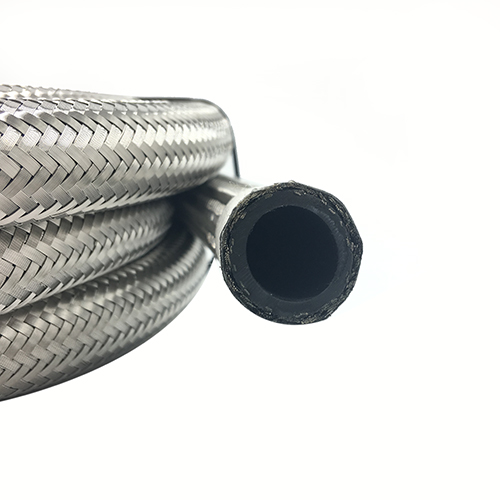

1.Tube: Black synthetic rubber blend
2.Cover: 304 Stainless Steel Braided
3.Reinforcement: Stainless Steel Braided Cover
Temperature: -40℃~+149℃
Application:
For use with fuel system,methanol,oil,lubricants,E85,E10,coolant systerm.
Specification:
Size | ID | OD | W.P | B.P | Minimum Bend Radius | ||
(mm) | (mm) | BAR | PSI | BAR | PSI | mm | |
An-4 | 5.56 | 11.13 | 103 | 1500 | 410 | 6000 | 50.8 |
An-6 | 8.73 | 13.89 | 103 | 1500 | 410 | 6000 | 63.5 |
An-8 | 11.12 | 16.28 | 103 | 1500 | 410 | 6000 | 88.9 |
An-10 | 14.27 | 20.24 | 86 | 1250 | 350 | 5000 | 101.6 |
An-12 | 17.47 | 23.82 | 70 | 1000 | 280 | 4000 | 114.8 |
An-16 | 22.22 | 29.36 | 52 | 750 | 210 | 3000 | 139.7 |
An-20 | 27.68 | 35.58 | 52 | 750 | 210 | 3000 | 350.5 |
